YAMAHA DRAG STAR 250

crazyautos.blogspot.com

crazyautos.blogspot.com
crazyautos.blogspot.com
crazyautos.blogspot.com

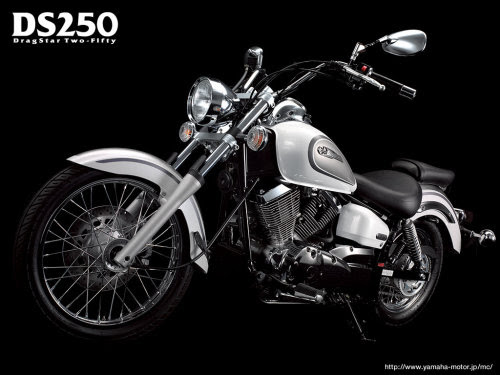

2007 Yamaha DragStar 250
Category: Cruiser

Also called:
Yamaha DragStar Two-Fifty
Yamaha DS250

Specifications:

Engine
Model: G604E
Type: Air cooled 4 strokes SOHC 2 valves
Cylinder: V type 2
Displacement: 248cc
Bore x stroke: 49.0mm × 66.0mm
Compression ratio: 10.0 : 1
Maximum power: 17kW (23PS) @ 8,000rpm
Maximum torque: 22N m (2.2kgf m) @ 6,000rpm
Starting system: Cell system
Lubricating system: Forced force wet sump
Carburetor type: BDS26×1
Ignition system: T.C.I. Formula

Powertrain
Primary drive: Gear, ratio = 3.130 (72/23)
Final drive: Chain, ratio = 2.800 (56/20)
Clutch type: Wet multiple plate coil springs
Transmission type: Return type 5 step
Change gear ratio:
1st: 2.642
2nd: 1.684
3rd: 1.260
4th: 1.000
5th: 0.821

Chassis
Frame type: Double cradle
Caster/trail: 35°00 ‘/135mm
Front brake: Hydraulic type single disk
Rear brake: drum
Front tire: 80/100-18M/C 47P
Rear tire: 130/90-15M/C 66P

Dimensions/weight/capacity
Length: 2,320mm
Width: 915mm
Height: 1,075mm
Wheelbase: 1,530mm
Seat height: 670mm
Dry weight: 147kg
Weight equipped: 159kg
Minimum turning radius: 2.9m
Oil tank capacity: 1.75L
Fuel tank capacity: 11L
Fuel economy: 51.0km/L @ 60kph

Electricals
Battery capacity/type: 12V-6Ah (10h)/YTZ7S (MF)
Headlight: Halogen valve (60W/55W)
